Pulse Fitness UK · Strength

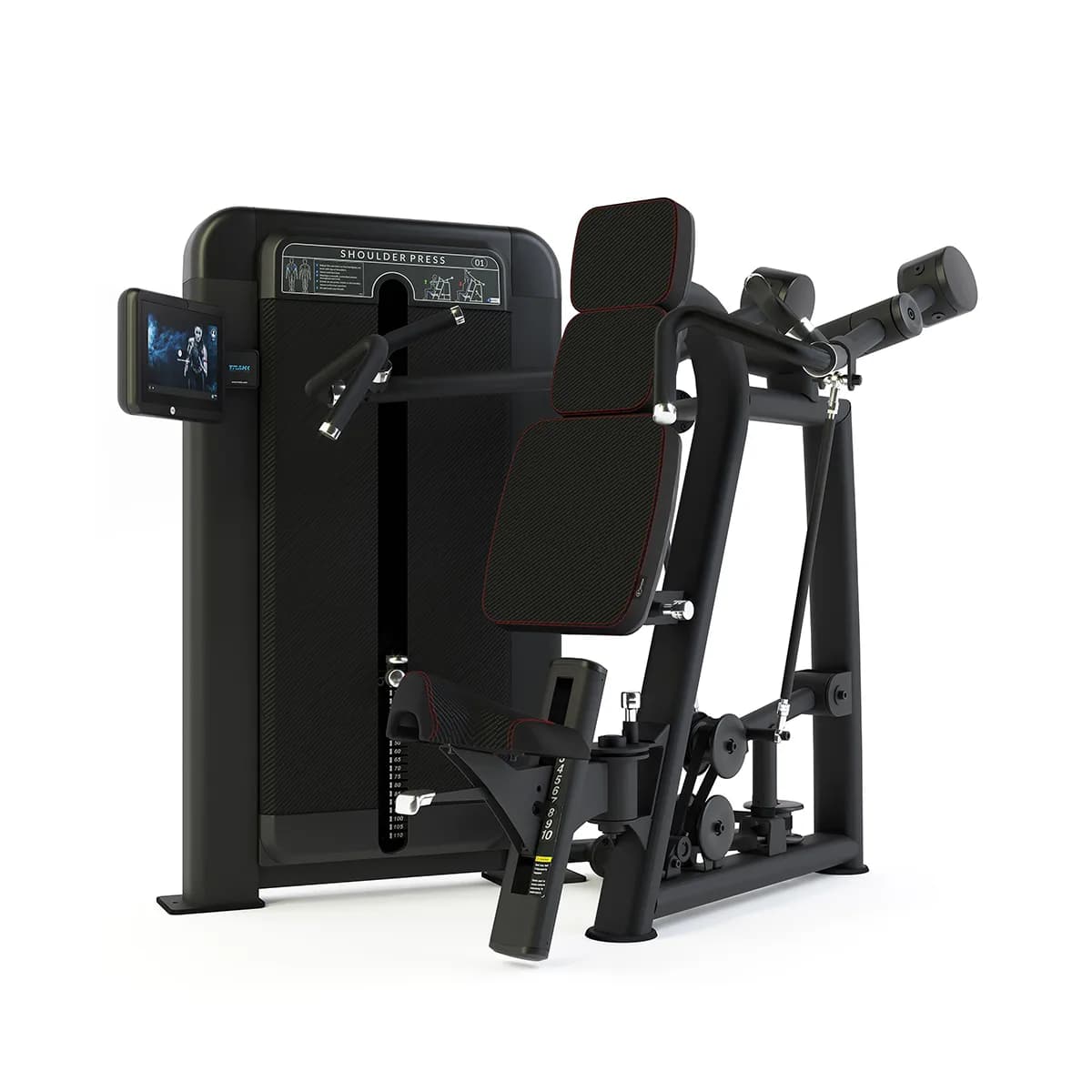

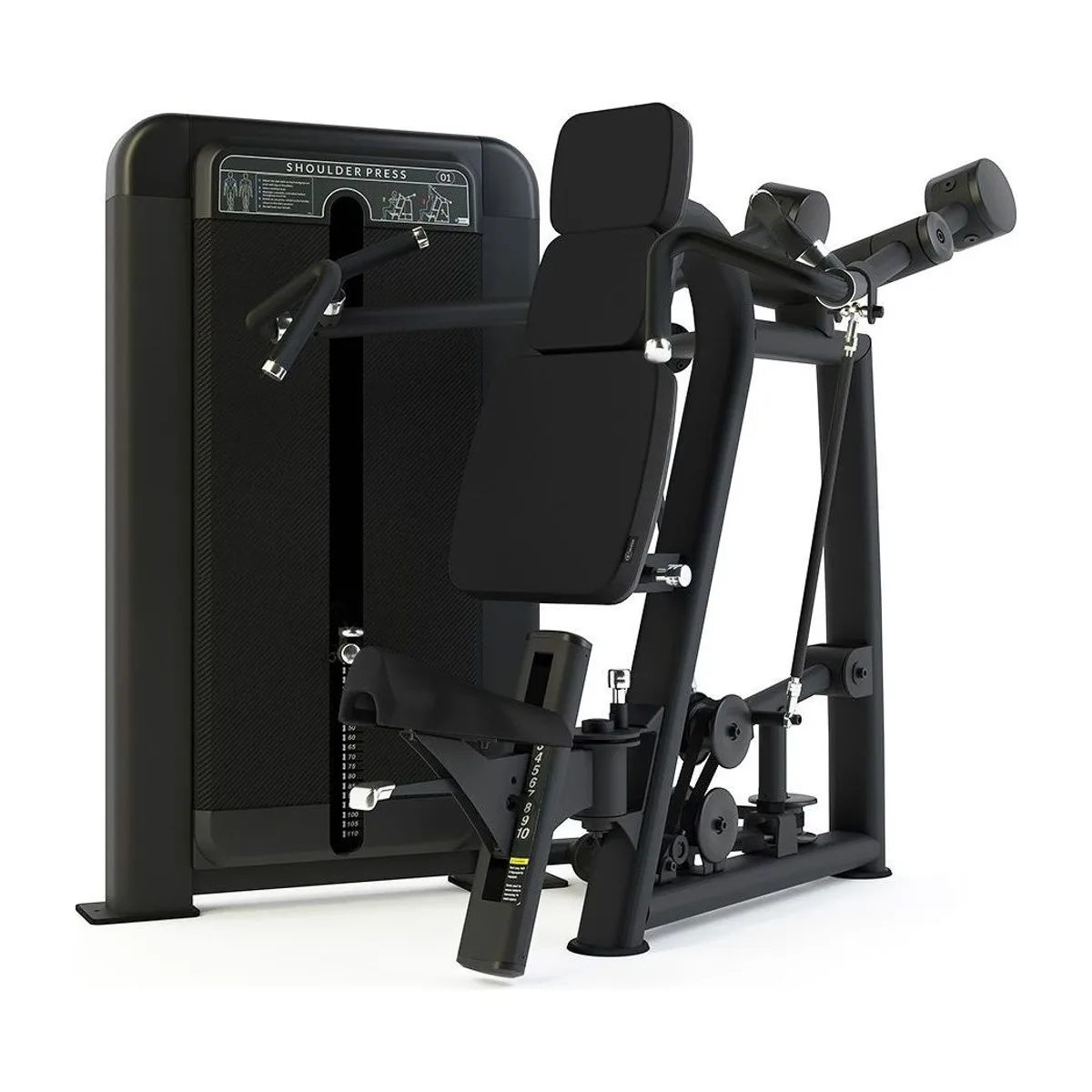

Club Line Shoulder Press

Standard

Premium Shoulder Press (Converging Axis) 1x100kg Weight Stack Tower with 10.1" (Cirrus V4) Touchscreen Console in Sand Black with Black / Carbon Fibre Upholstery Red Stitching (NFC.

3 variations

Upholstery

Carbon upholstery

Version

Inclusive

Request a quote WhatsApp +971 50 227 1425

Specification sheet, lead time and installation scope on request.

Overview

Category: Strength · Selectorised
Supplied by: Equipt, with installation and service

Specification81

Length: 155cm / 61″
Height: 135cm / 53-1/8″
Width: 144cm / 56-11/16″
Weight: 298kg / 657lbs.
Incremental, Optional Add-on Weight: 2.5kg / 5.5lbs.
Weight Stack Plates, Standard Total Weight: 100kg / 220lbs.
Maximum User Weight: 180kg / 397lbs.
Touchscreen: 25.7cm / 10-1/8″ Integrated High Contrast Capacitive Multi-Touch Colour Display; 16:9 Aspect Ratio; 1200×800 Resolution
Gesture Interaction (cm/”): Yes: 30.5cm / 12″
Navigation: Touchscreen (& tactile controls, with raised iconography on the product)
Active RFID reader: Yes
Bluetooth®: Yes
Via NFC Tag: Yes
LAN (Ethernet): Yes
WiFi, IEEE802.11b/g/n+ac (2.4 GHz & 5GHz): Yes
Bluetooth® 4.2 with NFC: Yes
USB 2.0: Service Port, For software updates
TRAKK™ Professional (NFC) Connectivity: Optional, Yes
Console O/S: Android 9.01
Power requirements: 220-240V AC, 50/60Hz; US, 110-120V, 60Hz
Mouldings: The console is surrounded by an injection-moulded casing, these are are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
Quick Start: Programmable Sets and Reps Count-Up
Goals: Rep Goal, Sets & Reps (Preset and Custom)
Units: Metric / Imperial
Sets: Total Sets Count
Reps: Total Reps Count
Weight: Total kg / lbs. Lifted Count
Duration: Minutes, Seconds
Avg. Range: %
Avg. Tempo: Slow, Good, Fast
How to Set-Up & Use equipment: Yes: How to Set-Up the Equipment instructional videos and How to Use the Equipment instructional videos
Results: Yes
Training Guidance: Next exercise, Training programme
Automatic Workout Tracking: Yes
Languages available: English (UK), French, German, Japanese, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish & Welsh
One-button Start: Yes
Pause Function: Yes
Live QR-Codes: Optional, Yes
Localisation: Adjust Default Language, Date & Time, Region, 24/12-hour Clock, Configuration
Default user: Adjust Default Sex, Weight, Age & Metric/Imperial, Configuration
Display: Adjust Default Brightness, Configuration
Ethernet: Configure, Ping test
Wi-Fi: Configure
Service & Firmware: Automatic Software Updates; Manual OS Updates
Goals: Adjust Default Rep Goal, 3 Sets x 10 Reps, 3 Sets x 12 Reps, 4 Sets x 10 Reps, 4 Sets x 12 Reps, Configuration
Quick Start: Adjust Default Exercise type (Sets goal/Reps goal) Goal, sets/reps, Configuration
Create New Schedule: Yes
Schedule Type: Schedule Name, Start Time, am, End Time, am, Duration, mins
Days Active: Mon, Tues, Wed, Thur, Fri, Sat, Sun
Schedule Setup: Sleep (Enable/disable, Reboot on wake); Guest Disable (Adjust Default Start time, am, End time, am, Configuration)
TRAKK: NFC user login (Enabled/disabled); Asset management (Enabled/disabled)
NFC user login: Show login page (Enabled/disabled); Guest Account (Enabled/disabled); Doctors note lockout (Enabled/disabled)
Asset management: Screen advertising (Enabled/disabled)
Custom branding: Club Logo (Enabled/disabled, Add Logo, Site Name, Configuration); text_tap( Enabled/disabled)
Screensaver Setup: Default Type (png/gif, mp4, tb); Show after (disabled, min/hour); Slide duration (sec/min); Add Images, Add Videos
Frame Construction: All Pulse Fitness products are constructed from durable steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity
Weight Stack Tower, Guarding: The weight stack tower is fully enclosed
Shrouds Colour: Carbon Fibre appearance
Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Weight Plates / Guide Rods: The weight stack tower is completely covered to provide the best possible user safety experience (in full compliance with EN and ASTM standards), protecting bystanders from accidental contact with a moving weight plate.; The front facing shroud is full-length, with a 60mm (2-3/8″) wide slot, giving access to the 8mm (5/16″) diameter, weight stack pin.; The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pin cannot be removed from the machine.; The cast and machined solid-steel weight plates are 15mm (9/16″) thick, 5kg (11lbs), with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 20mm (13/16″) in diameter, made from steel, precision centreless ground, polished with corrosion-resistant chrome plating for a smooth operation and rust retardation.; The weight stack tower is so positioned to be accessible from a seated position wherever possible.
Weight Stack Suspension: Proven rubber bumper damping system.
Smooth Operation: Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs
Belt Transmission: An ultra-modern manufacturing process is required to produce the open-ended steel-reinforced PU-flat belt (measuring 25mm (1″) x 2.3mm (1/16″)). This transmission system is constructed from a modified polyurethane which is lightweight, extremely flexible, has a high strength co-efficient (with a 92 shore A rating) is both hard-wearing and durable. It’s virtually corrosion-proof design is due to its metal cores being manufactured from galvanized steel which are then enclosed within a polyurethane shield. The cores are positioned parallel-to-edge in alignment which increases their combined flexibility. This approach allows the bearing face of the Belt to be made wider and so the machines pulleys are more easily driven. The polyurethane coating, ensures the Belt has anti-slip traction and an efficient power transmission. All of this technology provides the user with a quiet, smooth operation
Enclosed Pulleys and Bearings: The pulleys are 7.4cm (2-15/16″) in diameter. They are constructed from polypropylene that is reinforced with fiberglass and are designed to be convex (both with and without side flanges). These crowned pulleys ensure excellent power transmission and produce a smooth running product.; The pulley’s bearings are ABEC-rated, precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel.; The pulley’s pivot axles are solid steel supported by 25mm (1″) oil-impregnated bronze bushes that allow for precise alignment and frictionless movement
Handlebar Arm Motion: The motion of the handlebar arms mirrors the body’s natural movement, leading to a smooth, exercise and providing maximum training effect in the most efficient manner possible
Hand-Grip Assembly: The hand-grips have been positioned to ensure a neutral wrist position is always achievable. This facilitates less stress on the users wrist, which in turn allows for a more comfortable, and a safer work-out; The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are 35mm (1-3/8″) diameter Encompassing the hand-grips are the machined, aluminum end-caps, these provide great durability
Range of Motion: All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform
Counterbalanced Weight: The handlebar arms are counterbalanced allowing the user to start an exercise with a small weight selection
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean
Seat and Lever / Manual Adjustments: The gas-assisted, ratcheting seat adjusts, allowing it to fit a wide range of users. It has a spring-loaded, push-to-release mechanism. Its lock-pin is constructed using a hardened plunger and chrome plated tube-in-tube adjustment assembly
Alignment: All points of axis and rotation are located so as to enable perfect alignment of body and machine, reducing the risk of training injury
Multiple Hand-Grip Positions: Multiple hand-grip positions allows the user to be more specific about which muscle groups are worked out
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
Graphic Information Panel: The graphic information panel is designed to show an easy-to-follow, simple step-by-step pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out
Upholstery Construction: The long-lasting, easy-to-clean upholstered support pads and rollers, have a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. They are puncture, wear resistant and made from premium-quality industrial vinyl. The fabric meets or exceeds California fire regulations (Bulletin 117, section E). Total thickness is 70mm (2-3/4″)
Moulded Plastic Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded ABS plastic foot pads are supplied as standard
Package Length: 155cm / 61″
Package Height: 135cm / 53-1/8″
Package Width: 144cm / 56-11/16″
Package Weight: 298kg / 657lbs.
Model No: 305H
