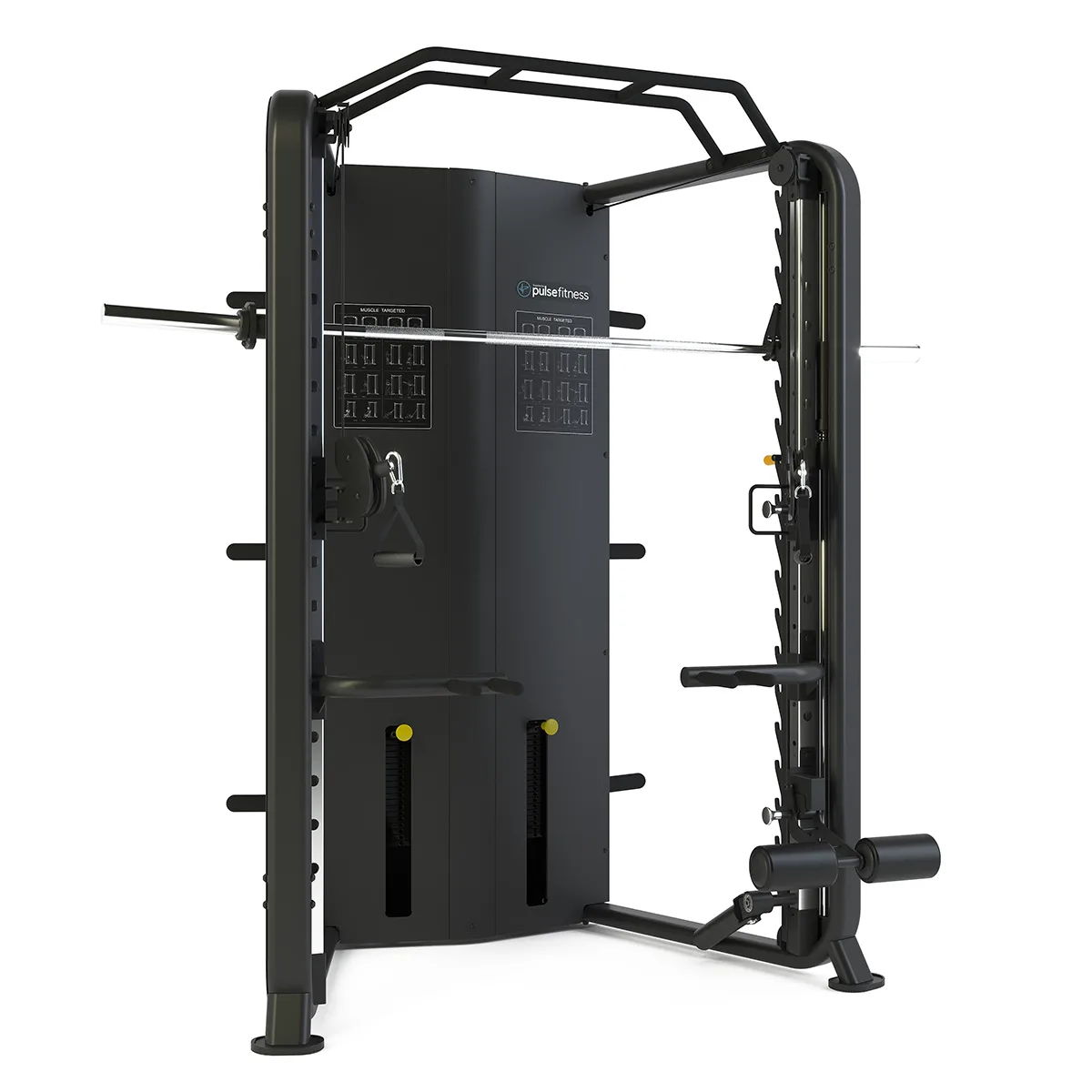

Essential Multi-Functional Trainer Rack

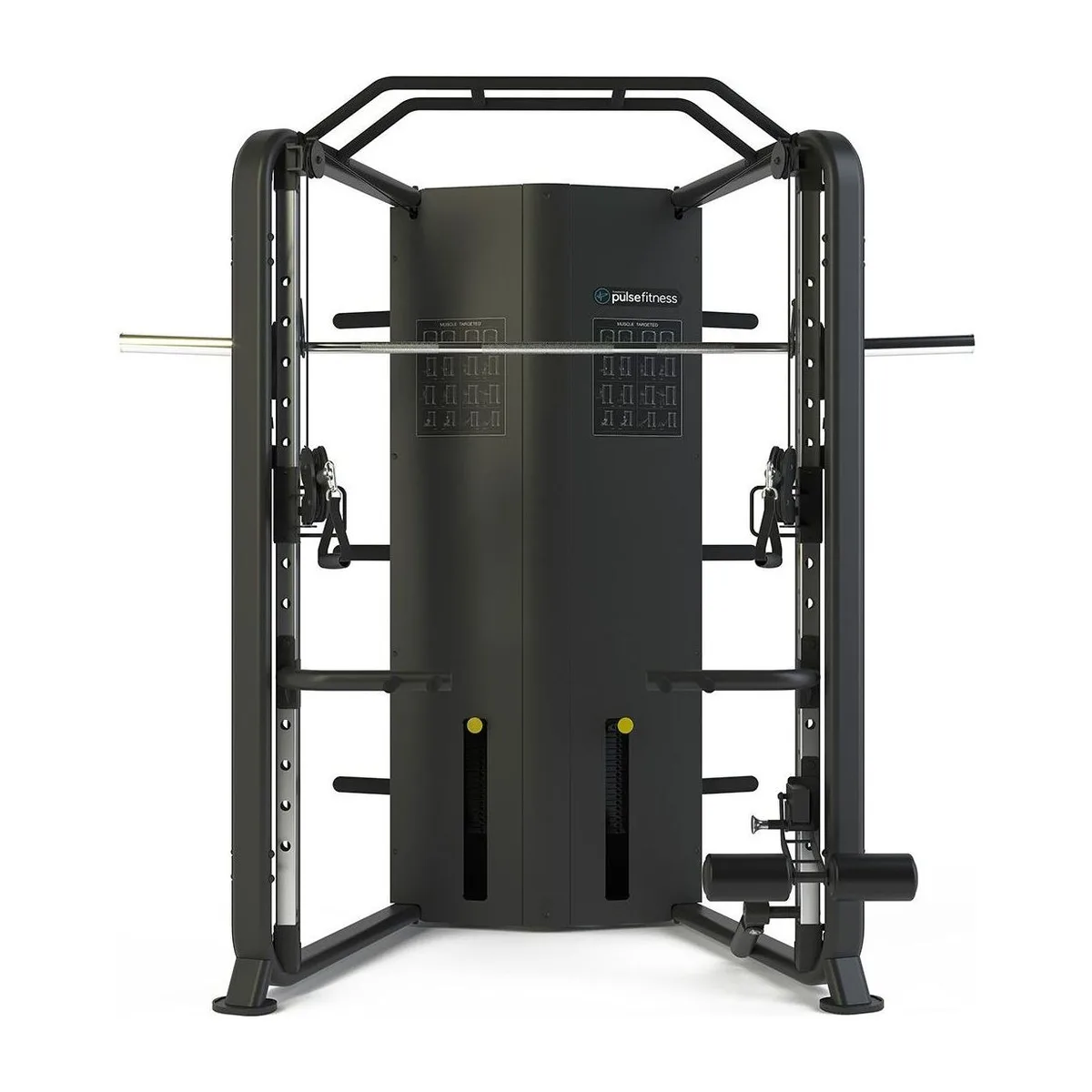

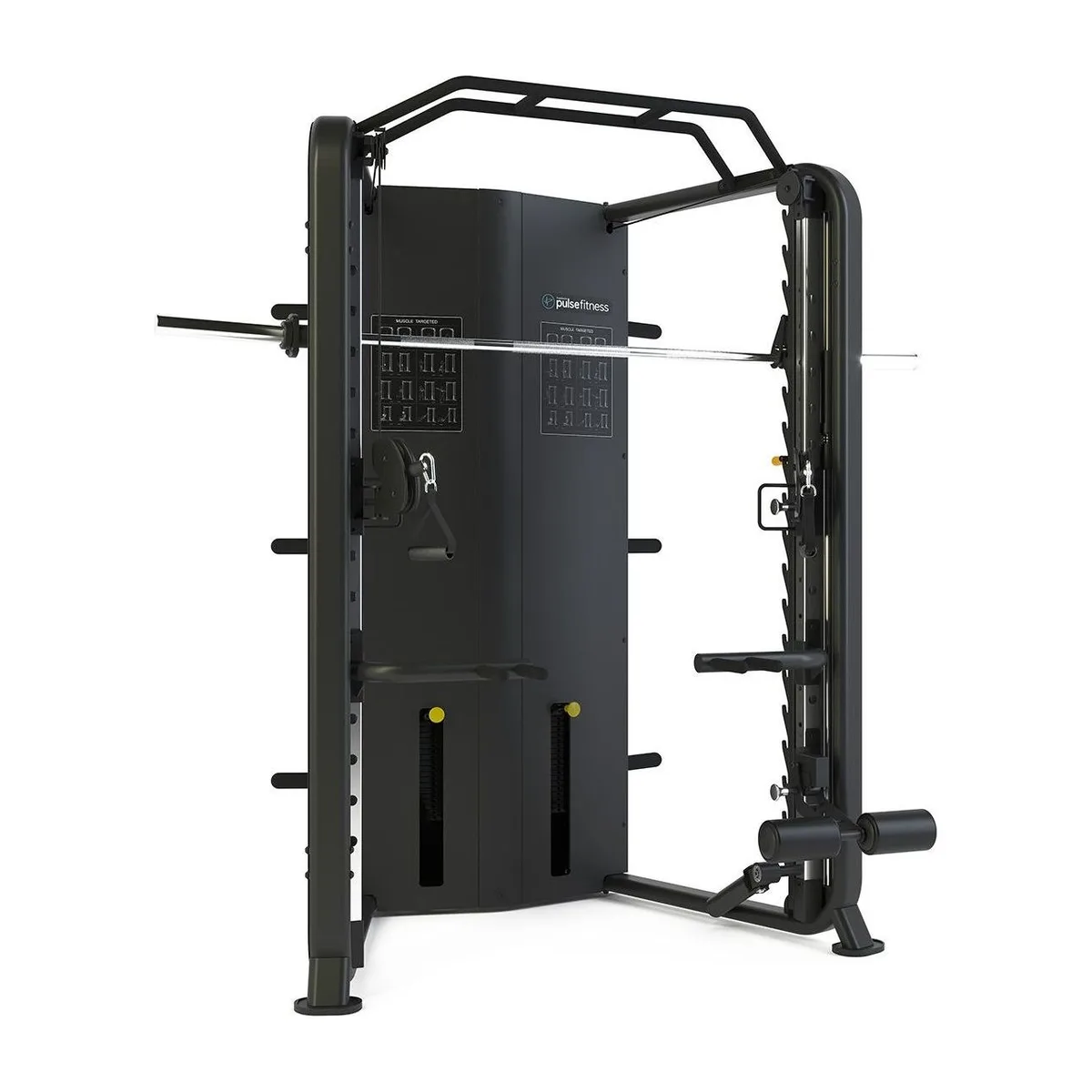

The Multi-Functional Trainer Rack has been designed to encompass three fitness machines into one, ideal for the home and light commercial gyms: 1. Dual Multi-Pulley 2. Half Rack 3. Smith Machine By doing so, it takes up less floor space in a home or gym/fitness environment Two 90kg (Rear) Weight Stack Towers, Pull-Up Cross Beams (inc. TRX support), Smith Machine...

Request a quote WhatsApp +971 50 227 1425

Specification sheet, lead time and installation scope on request.

Overview

Category: Free weights · Storage
Supplied by: Equipt, with installation and service
Reference: PLS-STR-RACK-001

Specification35

Length: 219.7cm / 86-1/2”
Height: 225.8cm / 88-7/8″
Width: 125.3cm / 49-5/16″
Weight: 428kg / 943.6lbs.
Unloaded Smith Machine Bar Weight: 12kg / 26.5lbs.
Smith Machine Bar Max. Loading Weight: 150kg / 330.7lbs. (each side), 300kg / 661.4lbs. (total capacity)
Maximum User Weight: 180kg / 397lbs.
Frame Construction: This products frame is constructed from commercial quality 2mm (14 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity
Weight Stack Tower, Guarding: The weight stack tower is fully enclosed

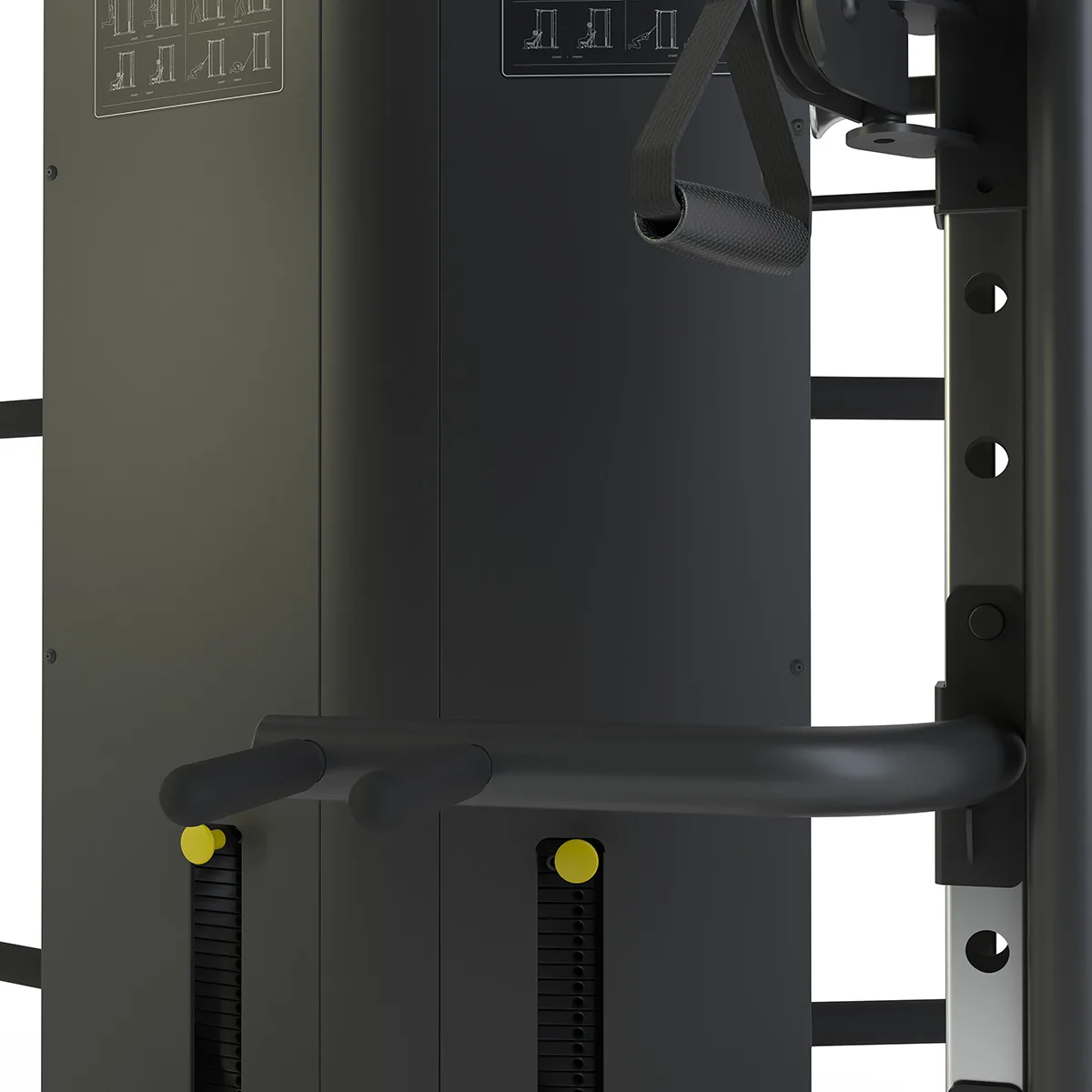

Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Variable Increment Weight Plates / Guide Rods: The selectorised Multi-Functional Trainer Rack provides users with a low starting weight and yet still has the capacity of a full weight plate range. This means users can build up their workout gradually, whilst the equipment still accommodates the widest possible user group; The 90kg weight stack towers are completely covered to provide the best possible user safety experience, protecting bystanders from accidental contact with a moving weight plate. The front facing shrouds are full-length, with a wide slot, giving access to the weight stack pin. The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pins cannot be removed from the machine. The weight stack pins are colour-coded for easy identification; The cast and machined solid-steel weight plates come with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are made from steel, polished with corrosion-resistant chrome plating for a smooth operation; The weight stack towers are so positioned to be accessible from a seated or standing position
Weight Stack Suspension: Proven rubber bumper damping system
Smooth Operation: Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs
Cable Transmission: The preformed and braided stainless steel cable, is rated to over 600kg / 1322.80lbs. load. The cables construction is lubricated, nylon-coated, and meets heavy-duty commercial specifications
Enclosed Pulleys and Bearings: The pulleys are constructed from nylon that is reinforced with fiberglass and designed with a deep V-grooved channel, to provide a secure cable seating; The pulley’s bearings are precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel; The pulley’s pivot axles are solid steel with oil-impregnated bronze bushings that allow for precise alignment and frictionless movement
Cable and Pulley Ratio: 2:1
Hand-Grip Assembly: The hand-grips have been positioned to ensure a neutral wrist position is always achievable. This facilitates less stress on the users wrist, which in turn allows for a more comfortable, and a safer work-out; The hand-grips are formed from a slip-resistant material that is non-absorbing and wear-and-tear resistant
Variable Height Pivotal Pulley: This allows the user to focus on either upper and lower limbs, as well as the trunk musculature
Range of Motion: All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform
Smith Machine Powerbar Assembly: 30mm Knurled Grip, with Sealed Bearings and Multi-Hook option s
Pull-Up Cross Beams: Multiple-grip, chin-up handles (with TRX support)
Olympic Plate Storage Posts: Detailed with a durable Polypropylene (PP) surface finish (x6)
Integrated Storage: For Powerbars to be easily accessible (x2)
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean
Via commercial grade Carabiners: Stirrup Handles (x2); Adjustable, Multi-Grip Rubber Covered Dual Dip Handles; J Hooks; Landmine; Dual-Grip Landmine Bar; Tricep Rope (with moulded Rubber Knobs); Quick Lock Clamp Collars (x2); Ankle Roller
Manual Adjustments: Manual adjustments are made simple via easy-grip, pull spring-loaded, lock-pins that are constructed using a hardened plunger and chrome plated ‘tube-in-tube’ adjustment assemblies

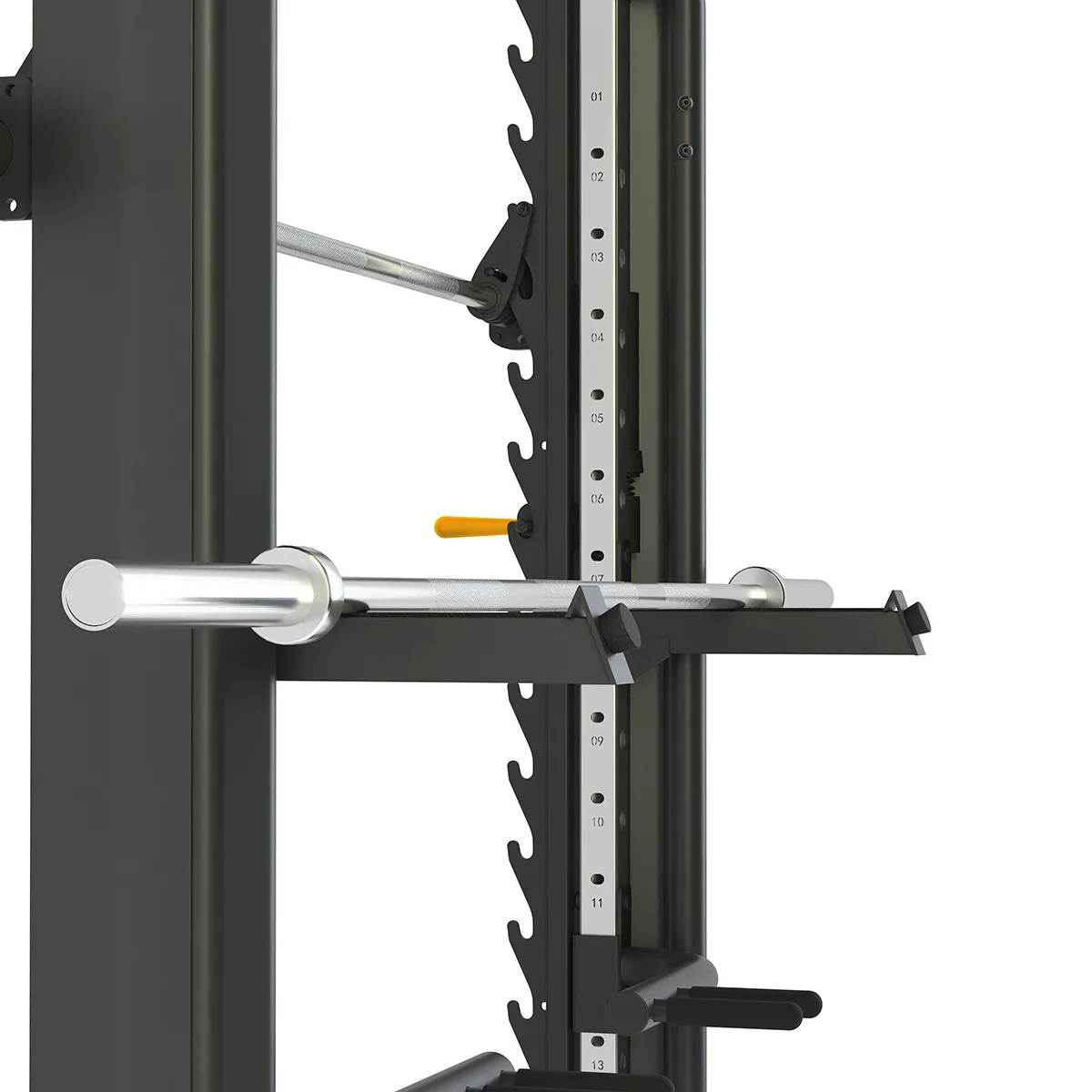

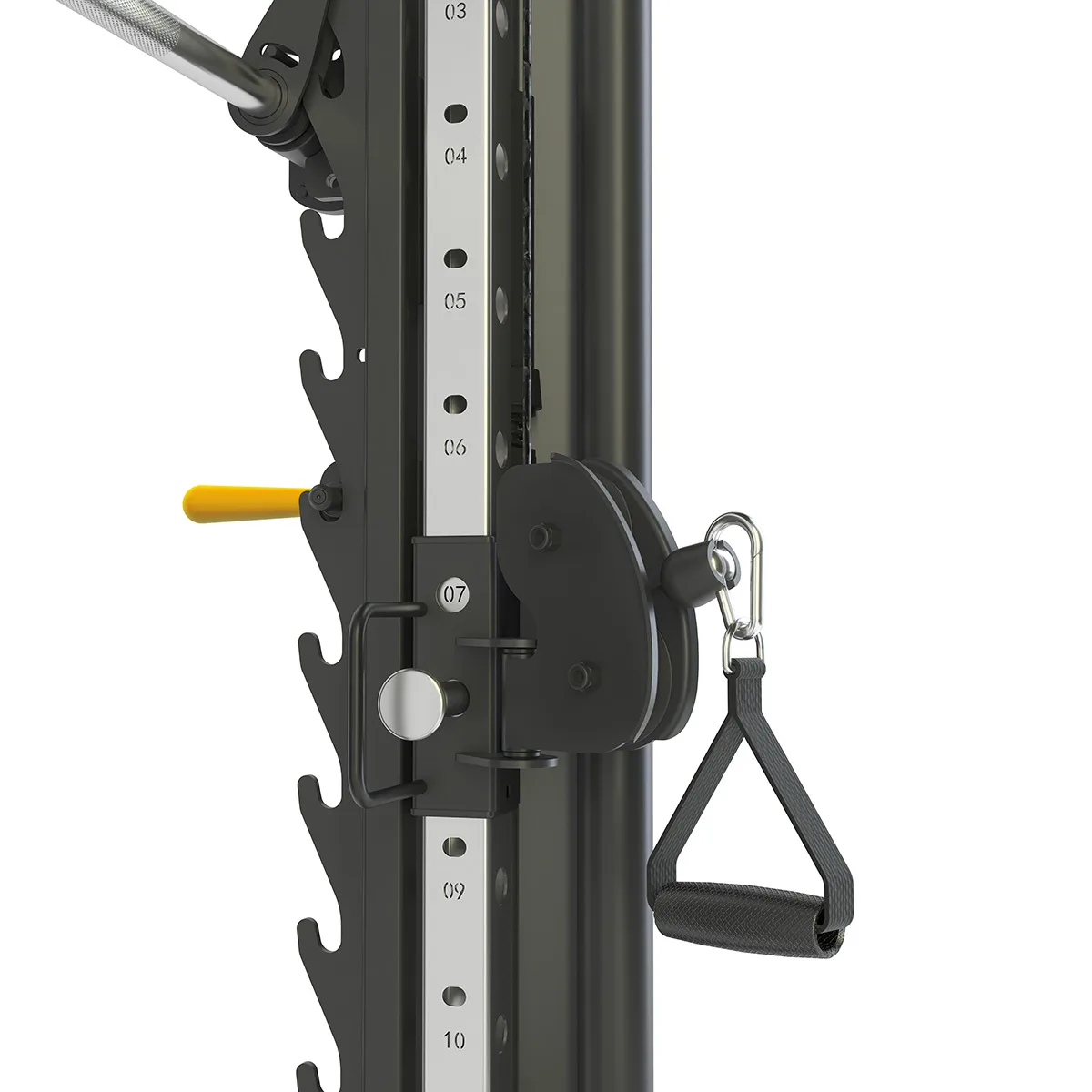

Frame Adjustment / Quick Reference: Laser-Etched and Numbered, Half Rack Modular Frame Uprights
Alignment: All points of axis and rotation are located so as to enable perfect alignment of body and machine, reducing the risk of training injury
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken
Multiple Grip Positions: Multiple grip positions allows the user to be more specific about which muscle groups are worked out
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed
Graphic Information Panel: The graphic information panels are designed to show an easy-to-follow, simple step-by-step pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out

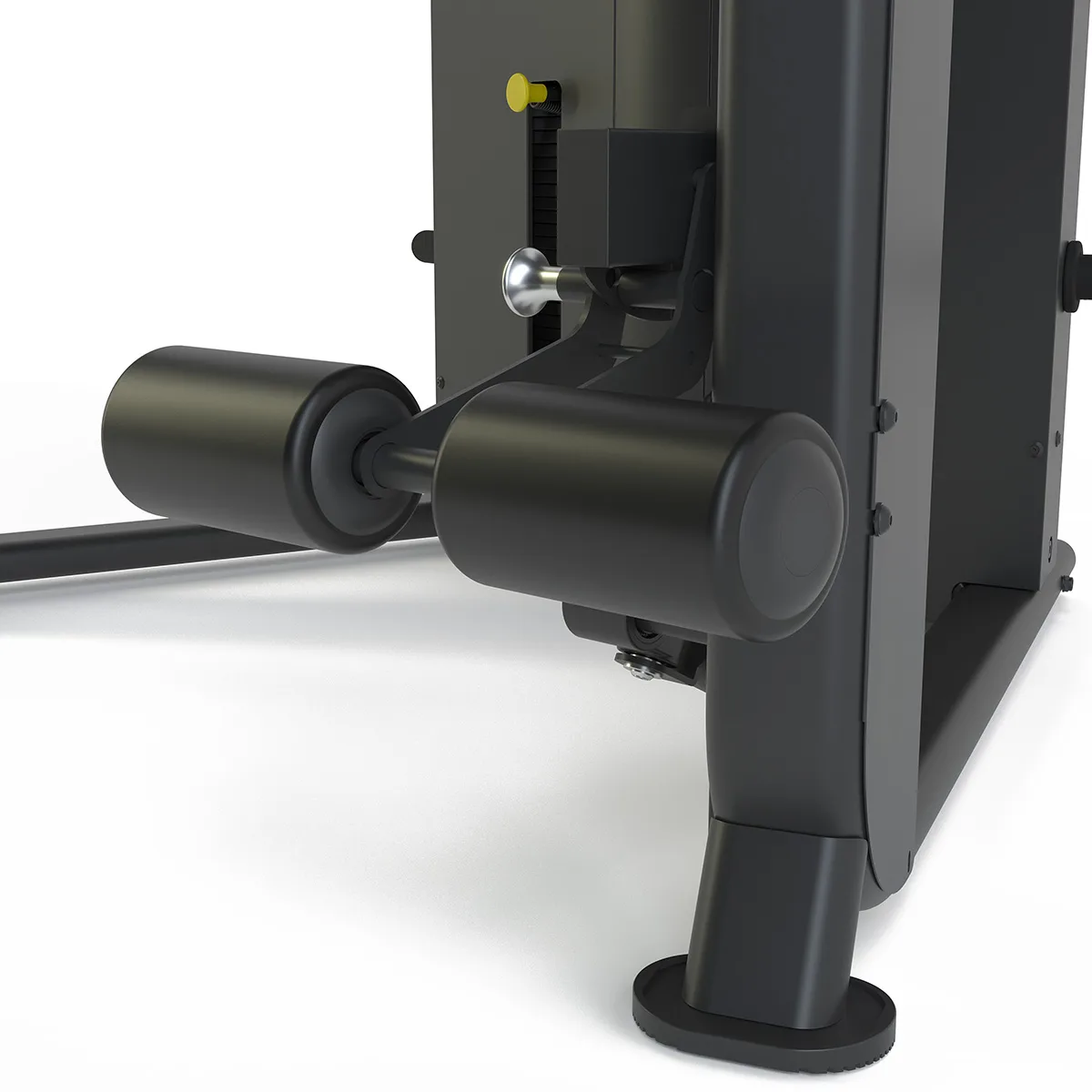

Upholstery Construction: The long-lasting, easy-to-clean upholstered support rollers have a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. They are puncture, wear resistant and made from vinyl
Moulded Plastic Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard
Model No: 870C
