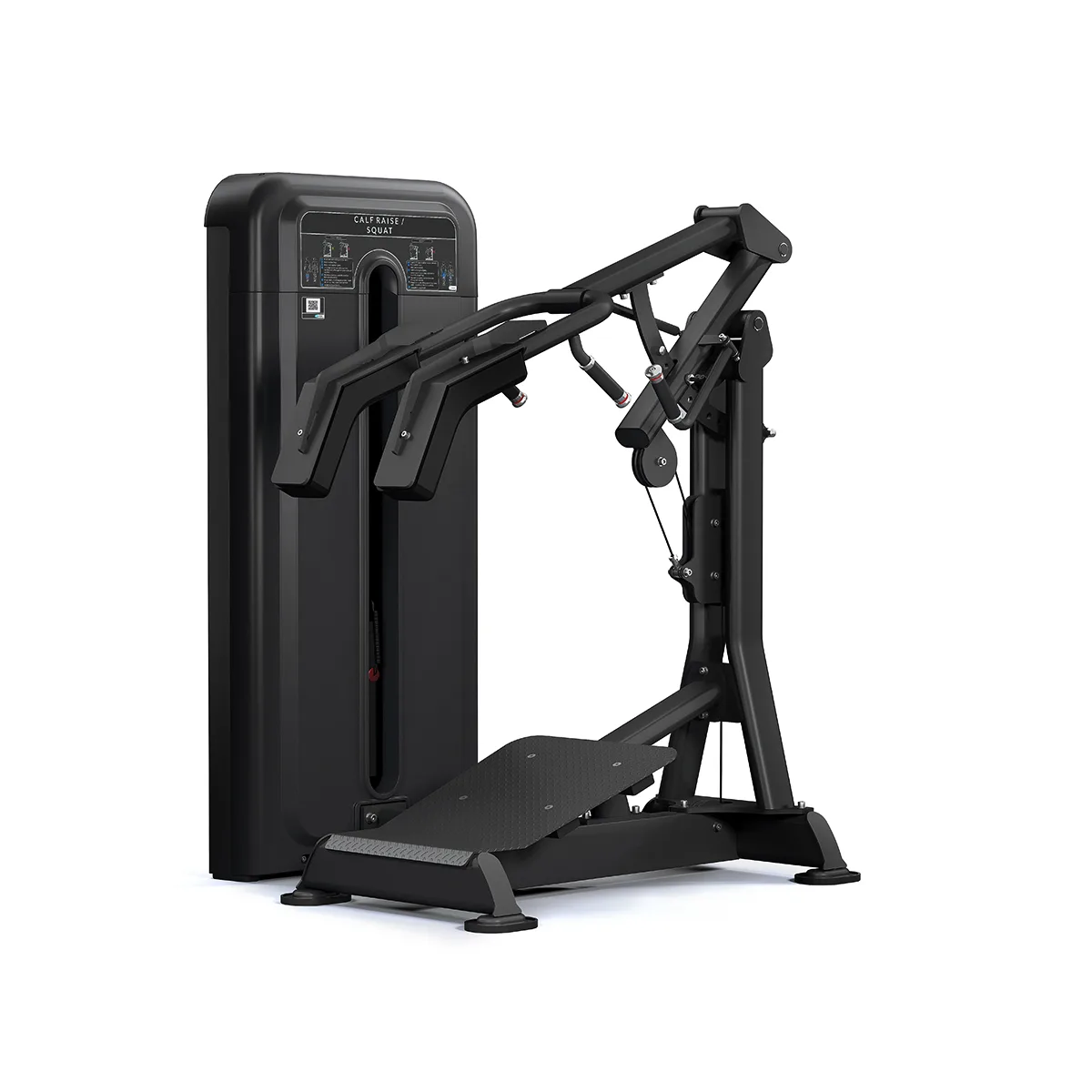

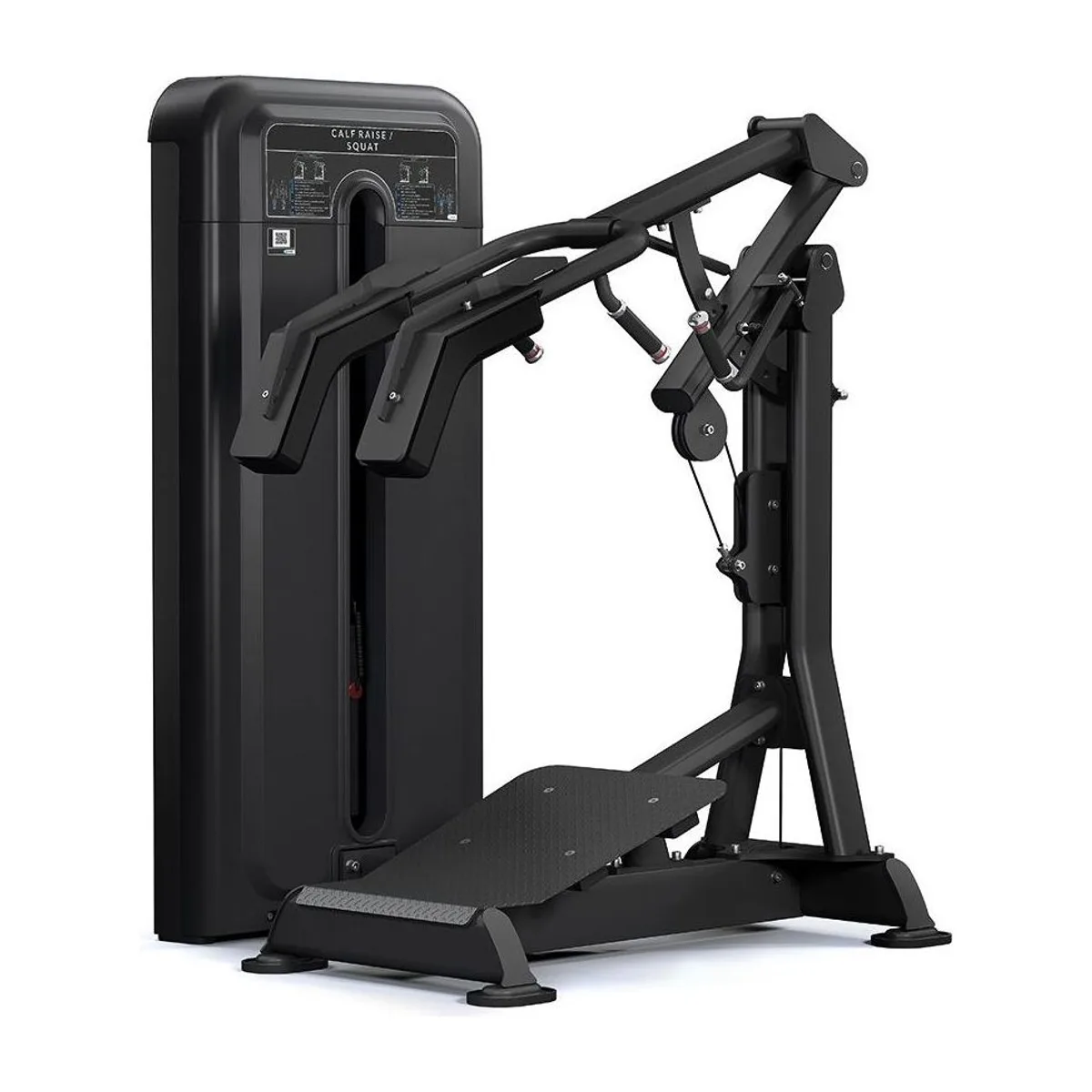

Squat / Standing Calf

Dual Use Squat / Standing Calf 1x122kg Weight Stack Tower in Sand Black with Black.

Request a quote WhatsApp +971 50 227 1425

Specification sheet, lead time and installation scope on request.

Overview

Category: Strength · Selectorised
Supplied by: Equipt, with installation and service

Specification32

Length: 129.5cm / 51″
Height: 158cm / 62″
Width: 115cm / 45-7/16″
Weight: 147kg / 324lbs.
Weight Stack Plates, Standard Total Weight: 122kg / 267lbs.
Maximum User Weight: 180kg / 397lbs.
Package Length: Box 1-172cm / 67-3/4″; Box 2-148cm / 58-1/4″; Box 3-28cm / 11″; Box 4-46cm / 18-1/8″; Box 5-46cm / 18-1/8″; Box 6-46cm / 18-1/8″; Box 7-46cm / 18-1/8″; Box 8-46cm / 18-1/8″
Package Height: Box 1-32cm / 12-5/8″; Box 2-37.5cm / 14-3/4″; Box 3-45cm / 17-3/4″; Box 4-15cm / 5-15/16″; Box 5-15cm / 5-15/16″; Box 6-15cm / 5-15/16″; Box 7-15cm / 5-15/16″; Box 8-15cm / 5-15/16″
Package Width: Box 1-87cm / 34 1/4″; Box 2-85cm / 33 7/16″; Box 3-18cm / 7-1/16″; Box 4-8.5cm / 3-3/8″; Box 5-8.5cm / 3-3/8″; Box 6-8.5cm / 3-3/8″; Box 7-6cm / 2-3/8″; Box 8-6cm / 2-3/8″
Package Weight: Box 1-62kg / 136.7lbs.; Box 2-105kg / 231.5lbs.; Box 3-5.4kg / 11.9lbs.; Box 4-27.2kg / 60lbs.; Box 5-27.2kg / 60lbs.; Box 6-27.2kg / 60lbs.; Box 7-18kg / 39.7lbs.; Box 8-18kg / 39.7lbs.
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Weight Stack Tower, Guarding: The weight stack tower is fully enclosed.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Variable Increment Weight Plates / Guide Rods: The Dual Strength Stations provide users with a low starting weight and yet still have the capacity of a full weight plate range. This means users can build up their workout gradually, whilst the equipment still accommodates the widest possible user group.; The weight stack tower is completely covered to provide the best possible user safety experience, protecting bystanders from accidental contact with a moving weight plate. The front facing shroud is full-length, with a 90mm (3-1/2″) wide slot, giving access to the 10mm (3/8″) diameter, weight stack pin. The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pin cannot be removed from the machine. The weight stack pin is colour-coded for easy identification.; The cast and machined solid-steel weight plates are 25mm thick, 4.5kg (10lbs) and 9.1kg (20lbs) sizes, with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 19mm (3/4″) in diameter, made from steel, polished with corrosion-resistant chrome plating for a smooth operation.; The weight stack tower is so positioned to be accessible from a seated position wherever possible.
Weight Stack Suspension: Proven rubber bumper damping system.
Smooth Operation: Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs.
Cable Transmission: Preformed and braided stainless steel (302/304) aircraft cable, measures 4.8mm (3/16″) diameter, and is rated to over 1678kg (3700lbs) load. The 7×19 strand construction, lubricated, nylon-coated cable meets commercial and U.S. military specifications.
Enclosed Pulleys and Bearings: The pulleys come in two sizes, 11cm (4-5/16″) and 11.5cm (4-1/2″) diameter. They are constructed from nylon that is reinforced with fiberglass and designed with a deep V-grooved channel, to provide a secure cable seating.; The pulley’s bearings are ABEC-rated, precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel.; The pulley’s pivot axles are 25mm (1″) solid steel with oil-impregnated bronze bushings that allow for precise alignment and frictionless movement.
Hand-Grip Assembly: The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are in diameter 33mm (1-1/4″). Encompassing the hand-grips are the machined, aluminium end-caps, these provide great durability.
Range of Motion: All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform.
Counterbalanced Weight: The shoulder pad arms are counterbalanced allowing the user to start an exercise with a small weight selection.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Lever / Manual Adjustments: Manual adjustments are made simple via easy-grip, pull spring-loaded, lock-pins that are constructed using a hardened plunger and chrome plated ‘tube-in-tube’ adjustment assemblies.
Alignment: All points of axis and rotation are located so as to enable perfect alignment of body and machine, reducing the risk of training injury.
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken.
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
Graphic Information Panel: The graphic information panel is designed to show an easy-to-follow, simple step-by-step pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out.
Upholstery Construction: The long-lasting, easy-to-clean upholstered support pad has a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. It is puncture, wear resistant and made from vinyl. Producing a total pad thickness of 70mm (2-3/4″)
Personal Storage: At the top of the weight stack tower, there is provision for a users personal storage. The storage dish and bucket have enough room to deposit items like mobile phones, keys & even a water bottle.
Moulded Rubber Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard.
OPTIONAL EXTRAS: Upholstery Colours: Slate Black / Midnight (Single Black Stitching); Reef (Single Dark-Blue Stitching); Rosso Red (Single Mid-Red Stitching)
Model No: 525H
