Pulse Fitness UK · Cardiovascular

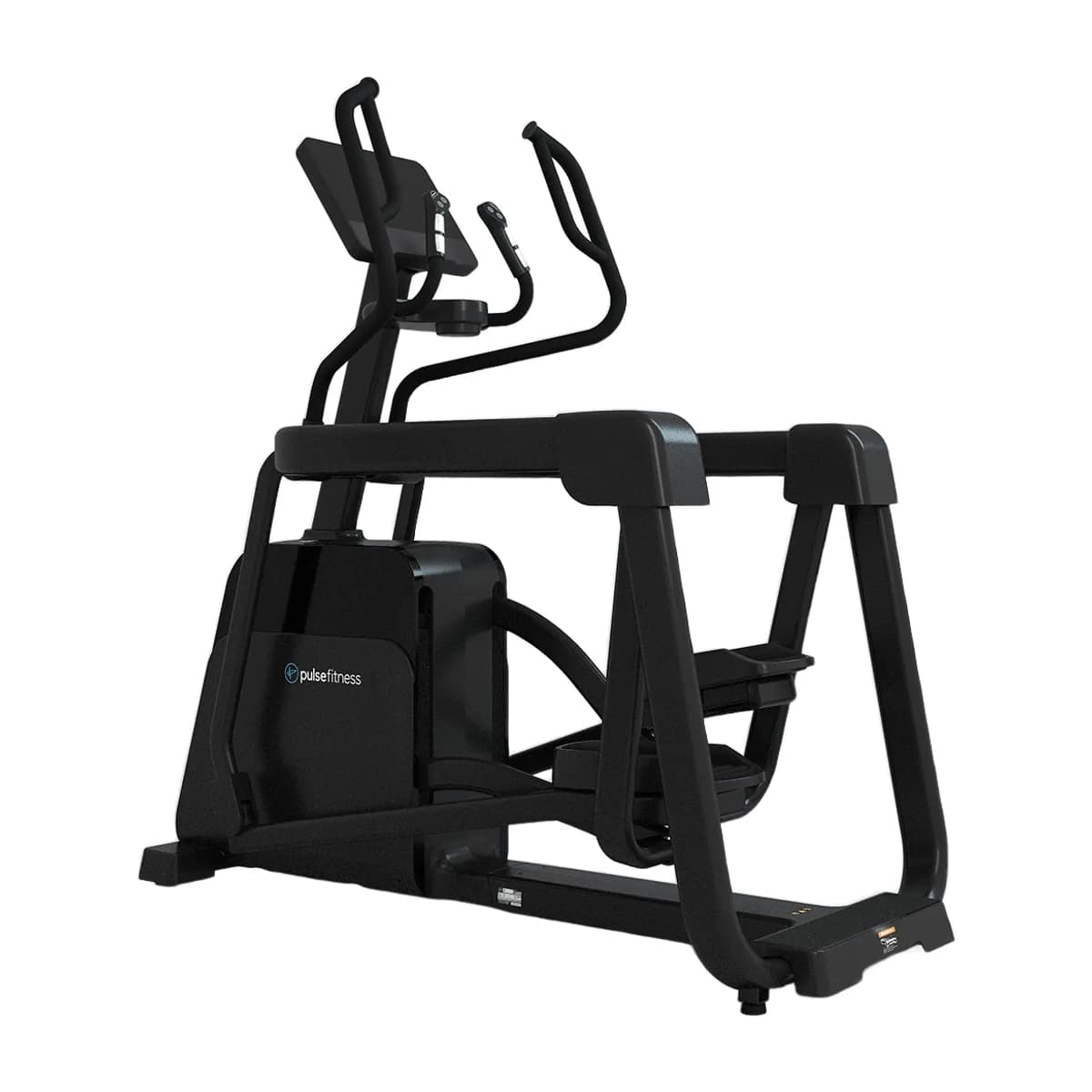

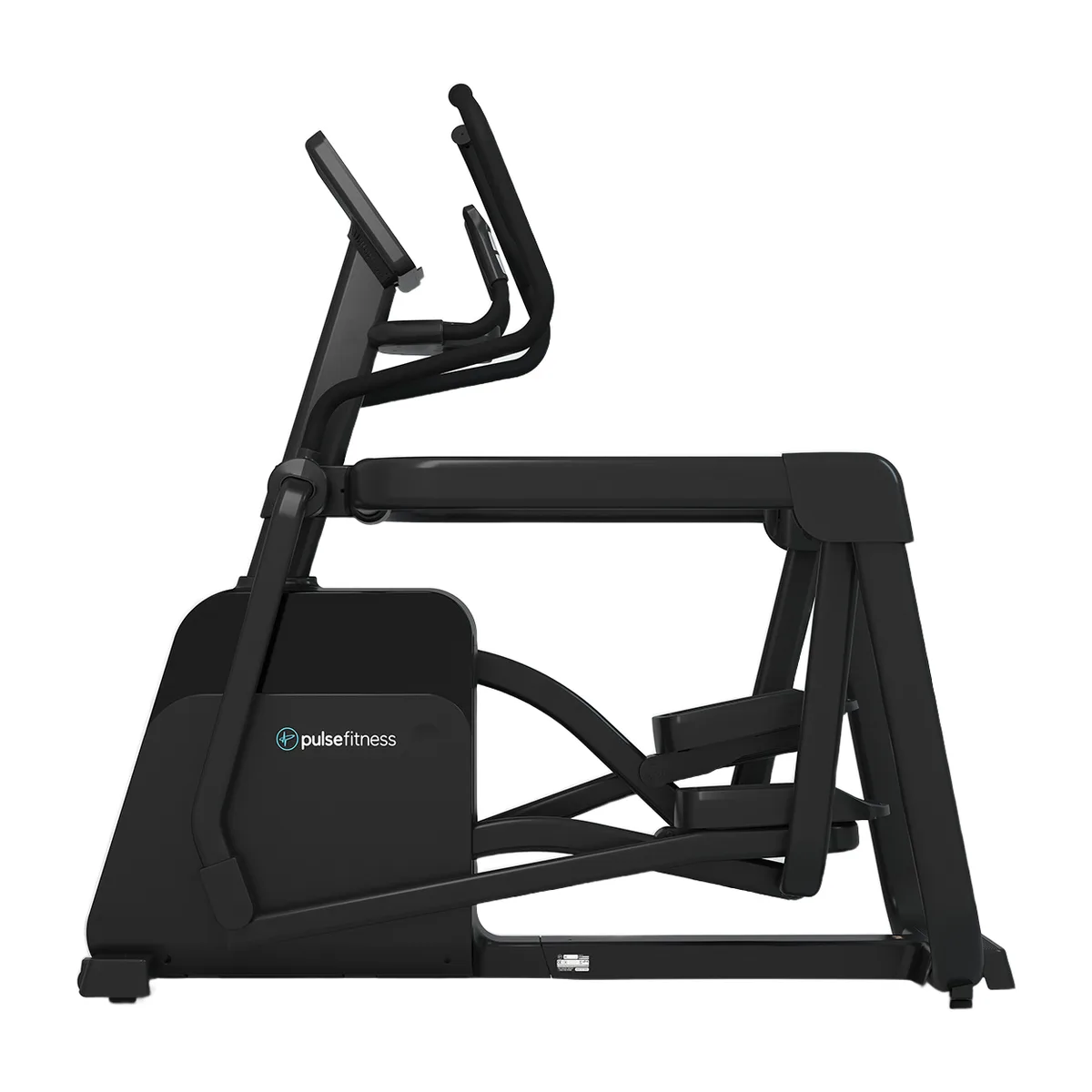

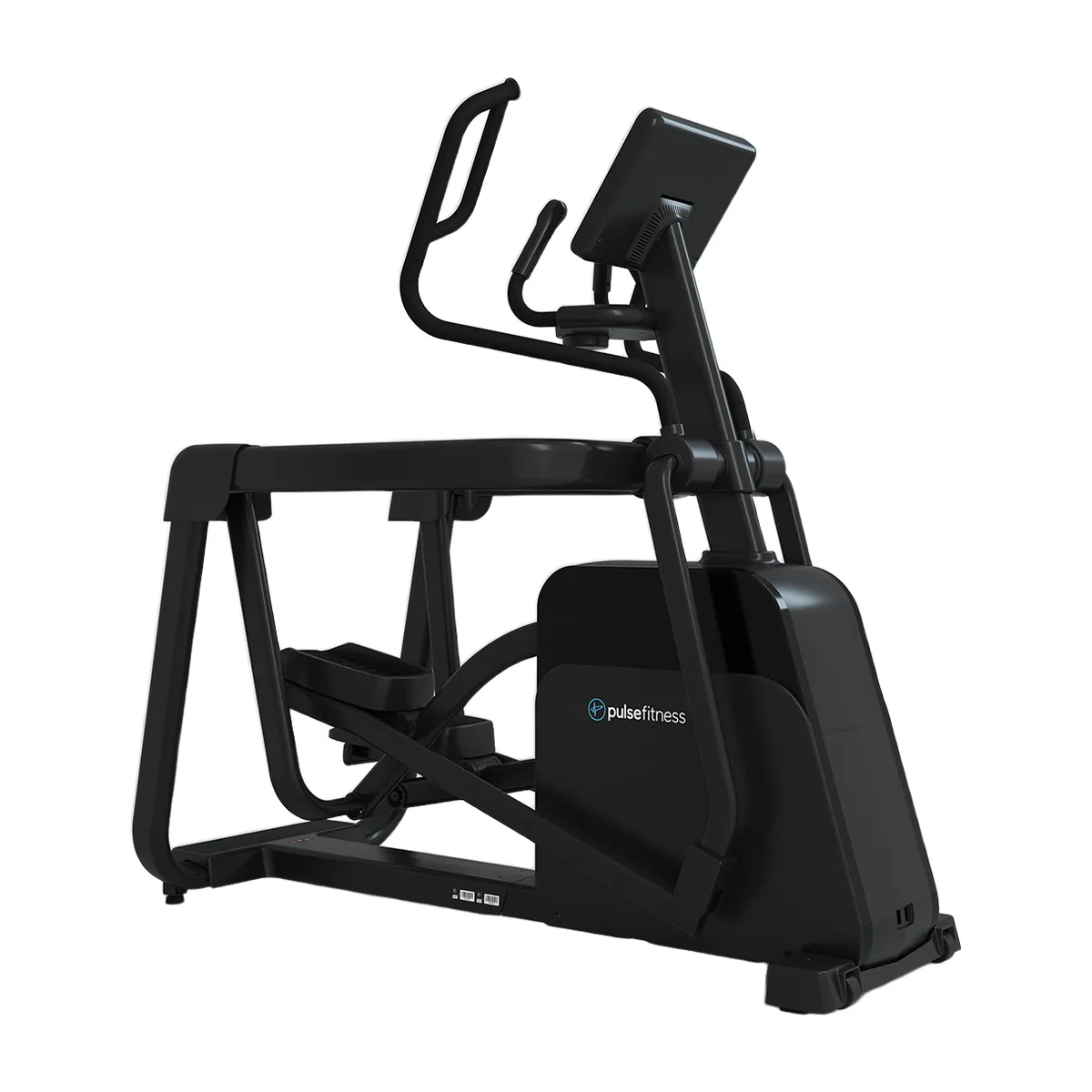

Suspension Elliptical Cross-Trainer

The new (277H) Suspension Elliptical Cross-Trainer is a commercial-grade, heavy-duty, cardiovascular machine. Designed for high-traffic environments like gyms, health clubs, and rehabilitation centres. This cross-trainer is built with professional-grade materials to withstand continuous daily use, offering a low-impact workout that mimics a walking or running movement, reducing stress on both muscles and joints. Available in self or powered options. Two...

Request a quote WhatsApp +971 50 227 1425

Specification sheet, lead time and installation scope on request.

Overview

Category: Cardio · Ellipticals
Supplied by: Equipt, with installation and service

Specification60

Length: 182cm / 71-5/8″
Stride Length: 53.3cm / 21″
Height: 180.5cm / 71-1/16″
Width: 91cm / 35-13/16″
Step-up height: 38.5cm / 15-1/8″
Weight: 163kg / 359.4lbs.
Maximum User Weight: 180kg / 397lbs.
Package Length: 199.5cm / 78-9/16″
Height: 108cm / 42-1/2″
Width: 65.5cm / 25-13/16″
Package Weight: 203kg / 447.5lbs .
Touchscreen: 39.7cm / 15.6″ Multi-Point Capacitive Touch; 1920 x 1080 Resolution
Navigation: Touchscreen (& tactile controls, on the product)
LAN (Ethernet): Yes
WiFi: Yes
Bluetooth®: Yes: FTMS protocol & BT/BLE
Apps: Yes: ZWIFT, Kinomap & Fit Show
Console O/S: Android 10
Reading Rack: Yes
Telemetry: Yes: Equipped for heart rate telemetry reading using a Wireless Heart Rate chest strap that supports BLE or standard 5kHz coded transmission ( Optional, chest strap required)
HandPulse Sensors: Yes
Power requirements: Electromagnetic Braking System (EMS)
Mouldings: The console is surrounded by an injection-moulded casing, these are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
Workout Programmes: Built in 22 user-defined programs
Programs: Twelve Preset Programs (Age, Level, Weight, Time). Divided in to 16 segments (00:00-99:00) and offering a time based Recovery Function
Manual: Quick Start (Age, Level, Weight, Time, Distance & Calories)
Running: Aerobic Mode, Boosting heart rate and breathing, increases blood flow and lung capacity. Higher levels of exertion, improves cardiovascular health and stamina.
Constant Watt: A Constant Watt program (often called ERG mode or Constant Work) is a smart setting that locks the Suspension Cross-Trainers specific power output, ensuring the user maintains an identical level of exercise intensity, regardless of how fast or slow they workout.
Heart Rate Programs: The three Heart Rate Programs are intended to be used with a Wireless Chest Band (Heart Rate Transmitter). HRC1 (60% of MHR) is a moderate heart rate workout that targets Fat Loss. HRC2 (70% of MHR) optimizes fat oxidation, making it ideal for weight management. HRC3 (80% of MHR) is a higher heart rate workout that targets Improved cardiovascular function.
User-Defined Programs: Four programmable User-Defined Programs are available. Users can control Age, Level, Weight and Workout Time (00:00-99:00).
Units: Metric / Imperial (Switchable)
Level: 32
Power: Watts
Time: 00:00-99:59 Minutes & Seconds
Total Hours: 00:00-9999:00 Hours
Calories: 0-999 Kcals
Total Distance: 0-9999 Km
Heart rate: 220 bpm
Speed: 0.0-99.9 km/h
Languages available: English
Pause Function: Yes
Quick Controls: Yes
Resistance System (Power): Electromagnetic Braking System (EMS)
Resistance (Max.): 350W Max.
Flywheel: Magnetic bidirectional
Cushioned pedals: Yes
UK/EU: EMS
‘Quick’ controls featuring handlebar resistance adjustments: Yes
Resistance Levels: 32
Storage bucket/cup holder: Yes: There is provision for a users personal storage. The storage bucket has enough room to deposit items like mobile phones, keys & even a water bottle
Front wheels for easy mobility: Yes
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Smooth Operation: Pulse Fitness cardiovascular products are renowned for their smoothness of operation. This results from our precision-engineered manufacturing processes.
Hand-Grip Assembly: The hand-grips are formed from a slip-resistant, electrostatically dip-moulded compound that is non-absorbing and wear-and-tear resistant.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Multipurpose Handlebars: Yes: Multi-Angle and Perimeter
Moulded Rubber Foot Pads: Yes: Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard
Key Features: Fixed Stride Pedal; Natural Motion: Simulates a smooth, elliptical motion that feels like walking, jogging or running; Full-Body Workout: Works legs, glutes, hamstrings and upper body (via. handlebars); 15.6″ Touchscreen Console; 22 Programmes / 32 Effort Levels; Connectivity to Tracking Apps; Integrated personal storage; Low-impact, full-body workout; Improves cardiovascular health, aids in weight loss, and enhances muscle strength/endurance
Model No: 277H
