Pulse Fitness UK · Cardiovascular

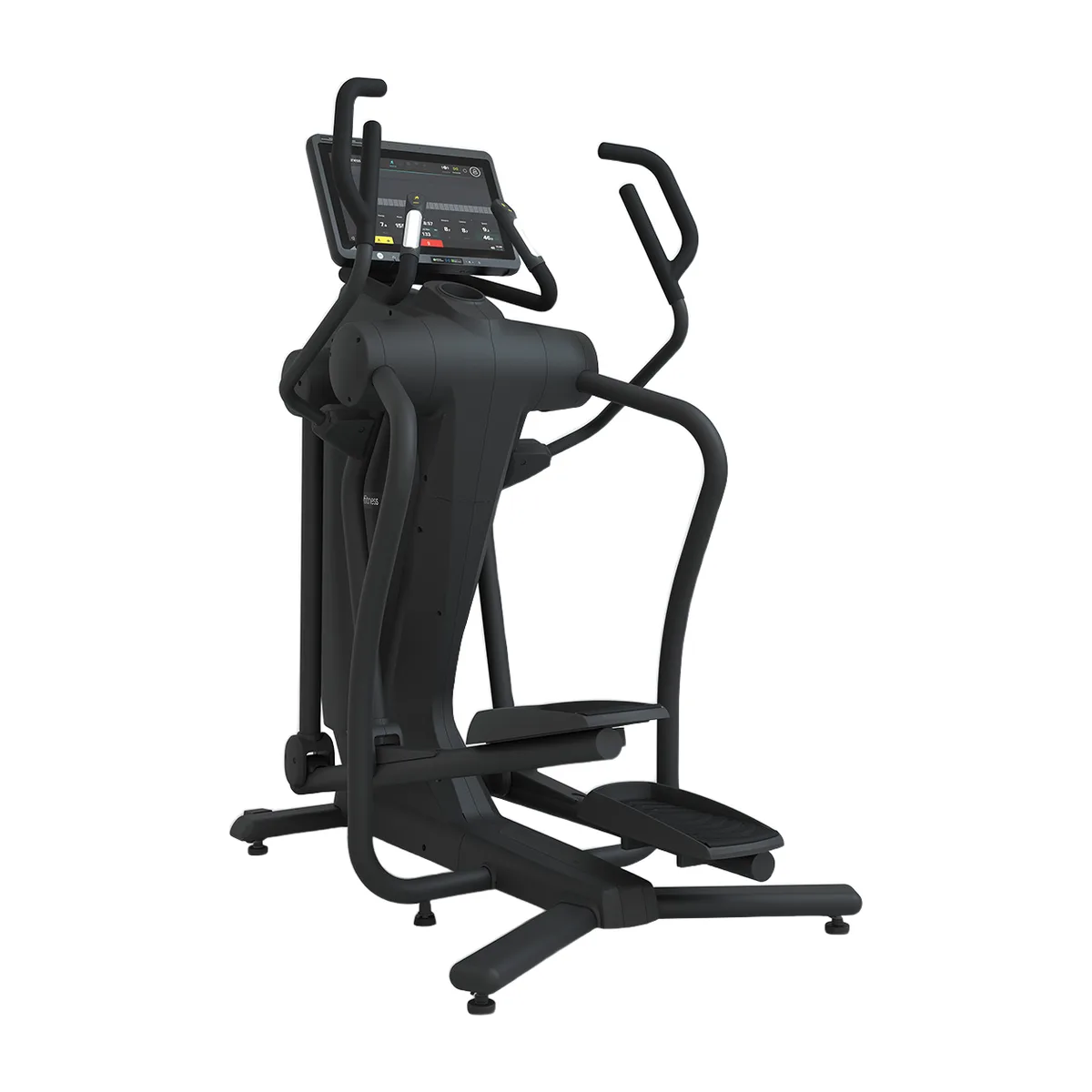

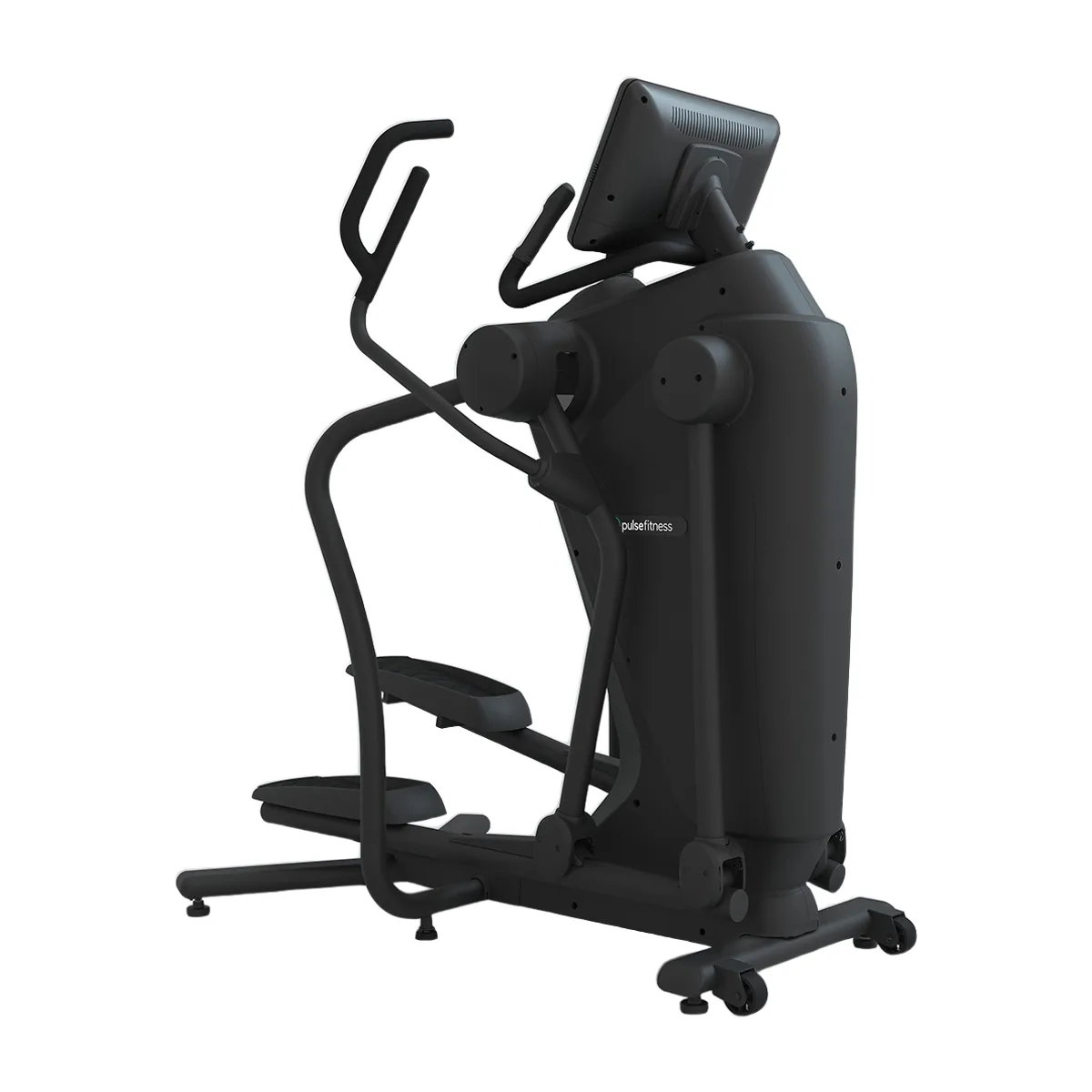

Premium Variable-Stride Trainer (18.5" Touch) Watch+Mirroring

Premium Variable-Stride Trainer · 18.5" Touch · Watch + Mirroring

The new (275H) Variable-Stride Trainer is an advanced elliptical machine, that allows users to instantly change the length of their stride/step during a workout. The machine has a smooth, elliptical motion that simulates activities like walking, jogging or running, whilst reducing impact on joints. Designed with an effective and engaging workout variety in mind, legs, glutes, hamstrings and the upper...

Request a quote WhatsApp +971 50 227 1425

Specification sheet, lead time and installation scope on request.

Overview

Category: Cardio · Ellipticals
Supplied by: Equipt, with installation and service
Reference: PLS-CRD-CRD-064

Specification114

Length: 143.8cm / 56-5/8″
Height: 172.3cm / 67-13/16″
Width: 95.8cm / 37-3/4″
Step-up height: 24.3cm / 9-9/16″
Weight: 150kg / 330.7lbs
Maximum User Weight: 181kg / 399lbs.
Package Length: 84cm / 33-1/16″
Package Height: 148cm / 58-1/4″
Package Width: 76cm / 29-15/16″
Package Weight: 168kg / 370.4lbs.
Integrated Television Tuner: UK/EU, Analog, PAL / Digital, DVB-T / T2 (Freeview); US, ATSC Tuner / PAL & NTSC (Auto Switch)
IPTV: MPEG-2 Standard Definition; MPEG-4 AVC/H.264 Standard Definition
Radio: Digital, DVB-T / T2
Simultaneous TV and workout statistics display: Yes
Web browser: Yes: Chrome™
Content Mirroring: Yes: Anytime/Miracast, Miracast allows users to wirelessly share multimedia, including high-resolution pictures and high-definition (HD) video content between Wi-Fi devices, even if a Wi-Fi network is not available. Miracast projects content from a smartphone to a cardiovascular machines infotainment system
Touchscreen: 47cm / 18-1/2″ Integrated High Contrast Capacitive Multi-Touch Colour Display; 16:9 Aspect Ratio; 1366×768 Resolution; Colour Depth 16.7M
Interactive User Console (cm/”): Yes: 53.3cm / 21″
Navigation: Touchscreen (& tactile controls, with raised iconography on the product)
Active RFID reader: Yes
Bluetooth®: Yes
Via NFC Tag: Yes
LAN (Ethernet): Yes
WiFi, IEEE802.11b/g/n+ac (2.4 GHz & 5GHz): Yes
Bluetooth® 5.3: Yes
2.0 MB camera and microphone: Yes
USB 2.0: Service Port, For software updates & Smartphone device charging
Headphone Jack: Stereo 3.5mm
Connects to Samsung Galaxy Watch: Yes
TRAKK® Professional Plus (NFC) Connectivity: Optional, Yes
Console O/S: Android 9.01
Audio feedback: Optional, Yes
Microphone Built-In: Yes
Telemetry: Equipped for heart rate telemetry reading using a Wireless Heart Rate chest strap that supports BLE, ANT+ standard 5kHz coded transmission ( Optional, chest strap required)
HandPulse Sensors: DSP HandPulse Sensors (Digital Signal Processing)
Power requirements: 220-240V AC, 50/60Hz; US, 110-120V, 60Hz
Mouldings: The console is surrounded by an injection-moulded casing, these are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
Quick Start: Programmable 30 min Count-Up Timer
Goals: Duration/Time, Distance & Calorie (Preset & Custom)
Pacer: Distance Goal (Preset & Custom)
Profile: Cross Country, Intervals, Hill Climb & Aerobic (Basic, Intermediate & Advanced Levels), Random & Custom
E-Scape: Virtual Interactive Video Workout’s (includes Road, Lake, Valley & Beach)
X-Train: Concentrate Workout on Arms, Legs or Total Body (Duration/Time, Distance or Calorie)
OnDemand: Yes: Pulse Fitness’ OnDemand feature, enhances the workout experience by bringing Personal Trainers right on screen to join Users during their workouts. This feature allows Users to access a library of pre-recorded workout sessions led by professional trainers in any ‘connected’ fitness facility. The wide array of workout sessions caters to diverse fitness goals. This innovative feature gives Users the flexibility to engage with Personal Trainers on their schedule, making fitness more accessible and personalised
Freeview HD TV: Yes
Device Content Mirroring: Yes: Anytime/Miracast, allows users to wirelessly share multimedia, including high-resolution pictures and high-definition (HD) video content between Wi-Fi devices, even if a Wi-Fi network is not available. Anytime/Miracast projects content from a smartphone to a cardiovascular machines infotainment system
Web browser: Yes: Installation of integrated apps/weblinks (for example, Chrome™, Facebook®, MyZone®, X® & YouTube™)
App Launcher: Yes
Units: Metric / Imperial
Bluetooth®: Audio
Level: 01 -40
Energy: Mets
Power: Watts
Time: Hours, Minutes & Seconds
Calories: Kcals
Distance: Km / miles
Heart rate: bpm
Speed: kph / mph, rpm
Pacer: kph / mph
Vs Pacer: Behind mtr / ft
Vs Best Lap: Ahead mtr / ft
Lap Times: Minutes, Seconds
Languages available: English (UK), French, German, Japanese, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish & Welsh
One-button Start: Yes
Pause Function: Yes
Speed Quick Control: Yes
Live QR-Codes: Optional, Yes
Localisation: Adjust Default Language, Date & Time, Region, 24/12-hour Clock, Configuration
Default user: Adjust Default Sex, Weight, Age & Metric/Imperial, Configuration
Display: Adjust Default Brightness, Configuration
Audio: Adjust Default Headphones Volume, Configuration
Results Sharing: Enable/Disable Fitbit & or Strava Results Sharing
Ethernet: Configure, Ping test
Wi-Fi: Configure
Service & Firmware: Automatic Software Updates; Manual OS Updates
General: Adjust Default Pause, Seconds, Quick Controls / Max speed, kph
Goals: Adjust Default Max duration goal, min, Max distance goal, Km, Max calories goal, Kcals, Configuration
Quick Start: Adjust Default Exercise type (Duration goal/Distance goal/Calories goal) Goal, mins, Configuration
Cool Down: Adjust Default Active after time, mins, Configuration; E-Scape Adjust Default Enabled State goal, Km, Configuration
Create New Schedule: Yes
Schedule Type: Schedule Name, Start Time, am, End Time, am, Duration, mins
Days Active: Mon, Tues, Wed, Thur, Fri, Sat, Sun
Schedule Setup: Quick Start Duration; Sleep (Enable/disable, Reboot on wake); Disable Entertainment (Enable/disable, TV, iPod, Internet, App Bar); Max Workout Duration (Adjust Default Start time, am, End time, am, Duration, mins, Distance, Km, Calories, Kcals, Configuration); Guest Disable (Adjust Default Start time, am, End time, am, Configuration)
TRAKK: NFC user login (Enabled/disabled); Asset management (Enabled/disabled)
NFC user login: Show login page (Enabled/disabled); Guest Account (Enabled/disabled); Doctors note lockout (Enabled/disabled))
Asset management: Screen advertising (Enabled/disabled)
Custom branding: Club Logo (Enabled/disabled, Add Logo, Site Name, Configuration); text_tap( Enabled/disabled)
TV: Enabled/disabled, Configure TV; Type (DVB-T, DVB-T2, DVB-T2(BOX), ATV, IPTV); Channel Tuning
HDMI: HDMI Input (Enabled/disabled, HDMI Input, Name Configuration)
Internet: Enabled/disabled, Browser, Option, Homepage, URL Shortcut
Apps: Apps State (Enabled/disabled); Apps Bar (Add App, Add URL Shortcut)
Screensaver Setup: Default Type (png/gif, mp4, tb); Show after (disabled, min/hour); Slide duration (sec/min); Add Images, Add Videos
Drive: Internal self tensioning poly V belt
Resistance: 30-450W
Power: Generator brake
‘Quick’ controls featuring handlebar resistance adjustments: Yes
40 Resistance levels: Yes
Storage bucket/cup holder: Yes: There is provision for a users personal storage. The storage bucket has enough room to deposit items like mobile phones, keys & even a water bottle
Front wheels for easy mobility: Yes
Patented articulating pedal with variable stride length: Yes: 28cm, 91.4cm / 11”- 36”
Anti-slip pedals: Yes
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Smooth Operation: Pulse Fitness cardiovascular products are renowned for their smoothness of operation. This results from our precision-engineered manufacturing processes.
Hand-Grip Assembly: The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Multipurpose Handlebars: Yes: Perimeter
Moulded Rubber Foot Pads: Yes: Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard.
OPTIONAL EXTRAS: Connectivity: This equipment has been designed to allow seamless upgradeable access to Pulse Fitness’ digital fitness ecosystem TRAKK®; TRAKK® is a fitness tracking and management system. Its users can track their activity, both within and outside any ‘connected’ fitness facility.; TRAKK® centralises data on a cloud based server; If the fitness facility has opted for TRAKK®, the solution will allow contact with staff, monitor the fitness workout progress and manage programmes assigned to users. The result is a personalised workout experience; This flexible, interactive, digital system requires updates to Pulse Fitness’ equipment (Consoles & QR-codes). A PC to run the desktop software/Tanita scales/NFC tag reader and a smartphone/tablet to use Web/Mobile App’s
OPTIONAL EXTRAS: A personalised cardio experience: Gone are the days when users were expected to run on analog cardio machines, at the same speed and incline, over and over again, without making any noticeable training progress. EGYM’s Smart Cardio is a personalised to individual goals making even small successes visible
OPTIONAL EXTRAS: Cardio training for all target groups: A personalised training experience with just a flick of the wrist. Thanks to the contactless login via the EGYM RFID chip, the cardio machine knows the training goal and training plan of its users, automatically adjusting to their individual training parameters
Key Features: Adjustable Stride Length: Instantly change stride from short (walking) to long (running) for enhanced muscle engagement; Natural Motion: Simulates a smooth, elliptical motion that feels like walking, jogging or running; Full-Body Workout: Works legs, glutes, hamstrings and upper body (via. handlebars); Workout Variety: Short strides work lower leg muscles, while longer strides engage glutes and hamstrings; 18.5″ Touchscreen Console; 30 Programmes / 40 Effort Levels; Entertainment (HDTV/apps); Virtual interactive video workouts; Internet Connection (Ethernet/Wi-Fi); Bluetooth® Connectivity (Headphones/Heart Rate Monitoring); Connects to Samsung Galaxy Watch; Content Mirroring; Seamless automatic Software updates; Integrated personal storage; Poly V-belt combination ensures quiet operation
Optional Extras: Upgrade to TRAKK® digital fitness ecosystem; Upgrade to EGYM Smart Cardio digital fitness ecosystem
Model No: 275H
